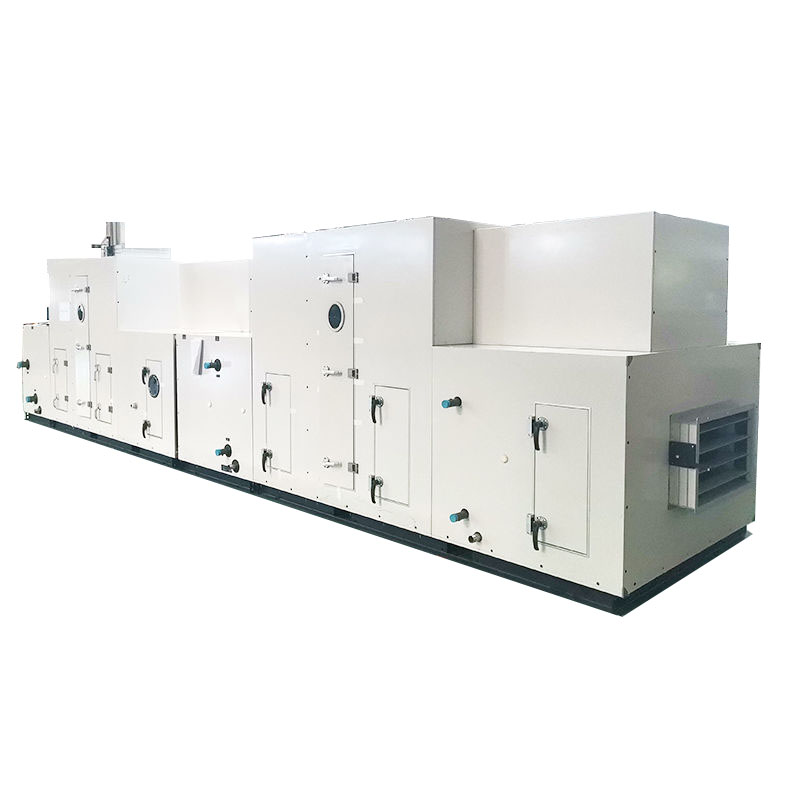

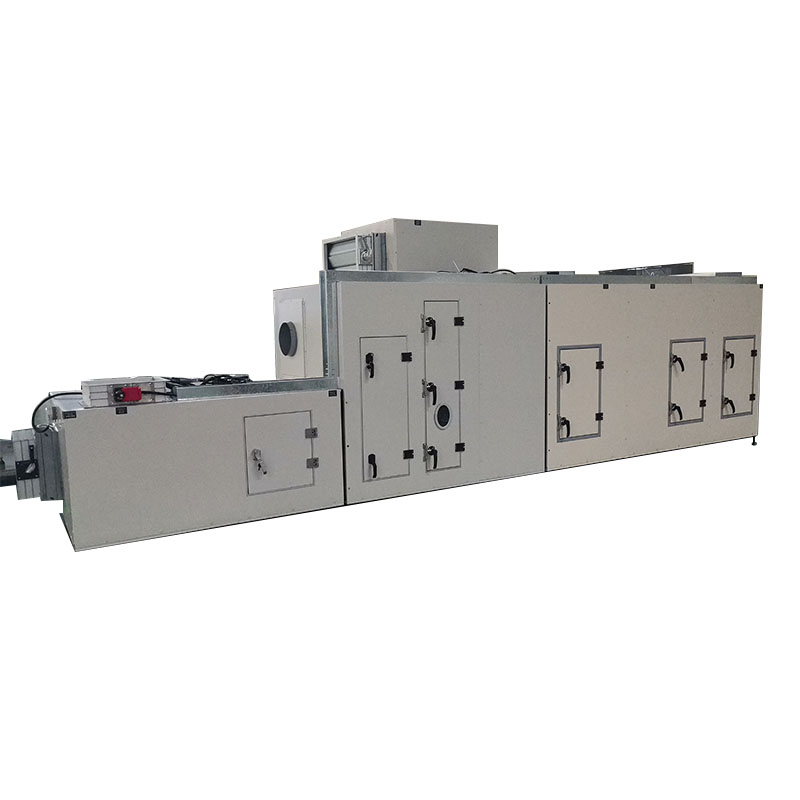

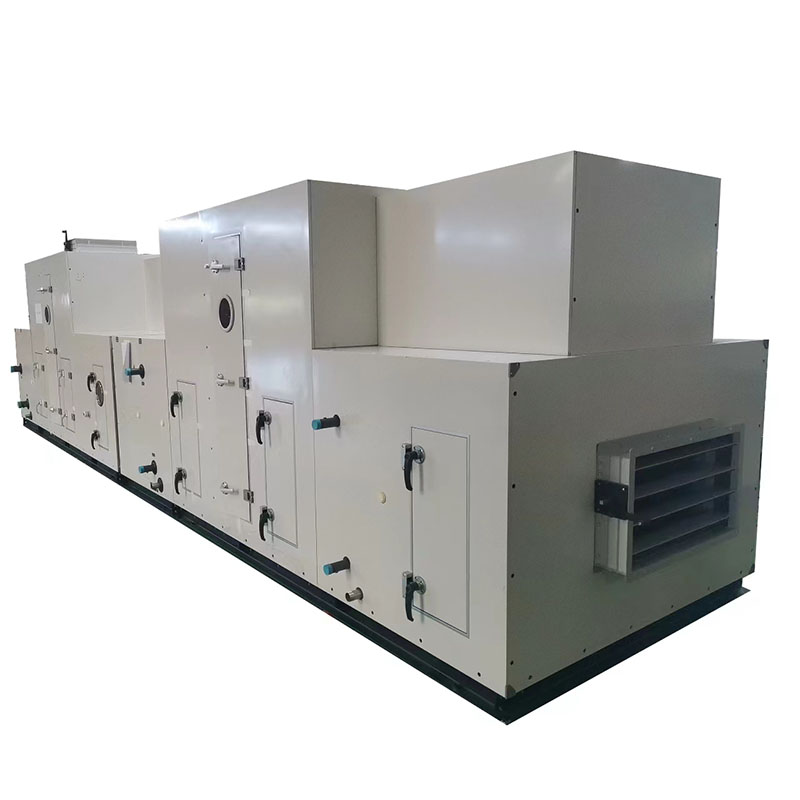

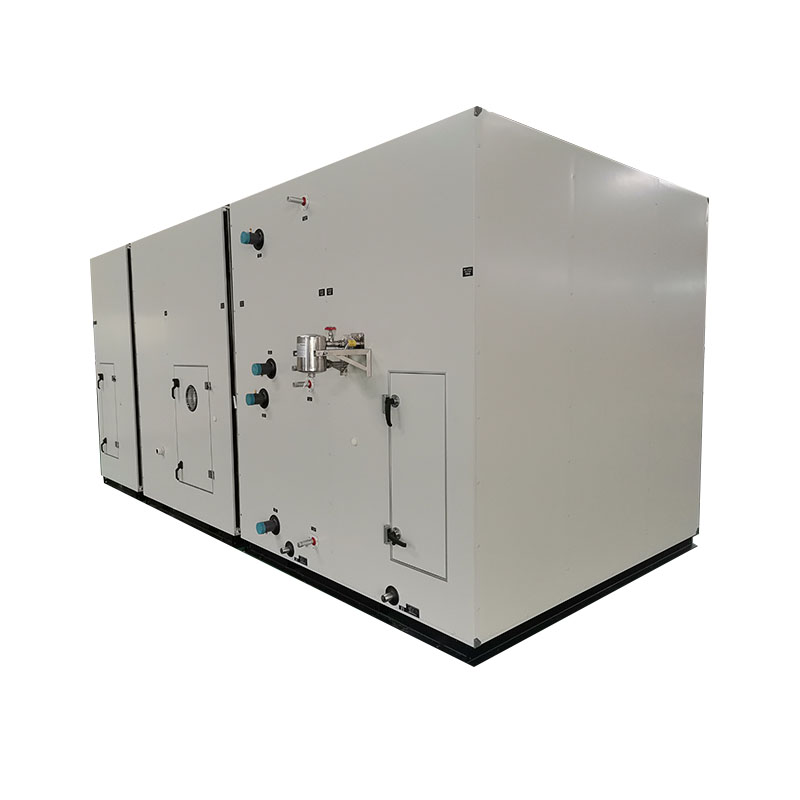

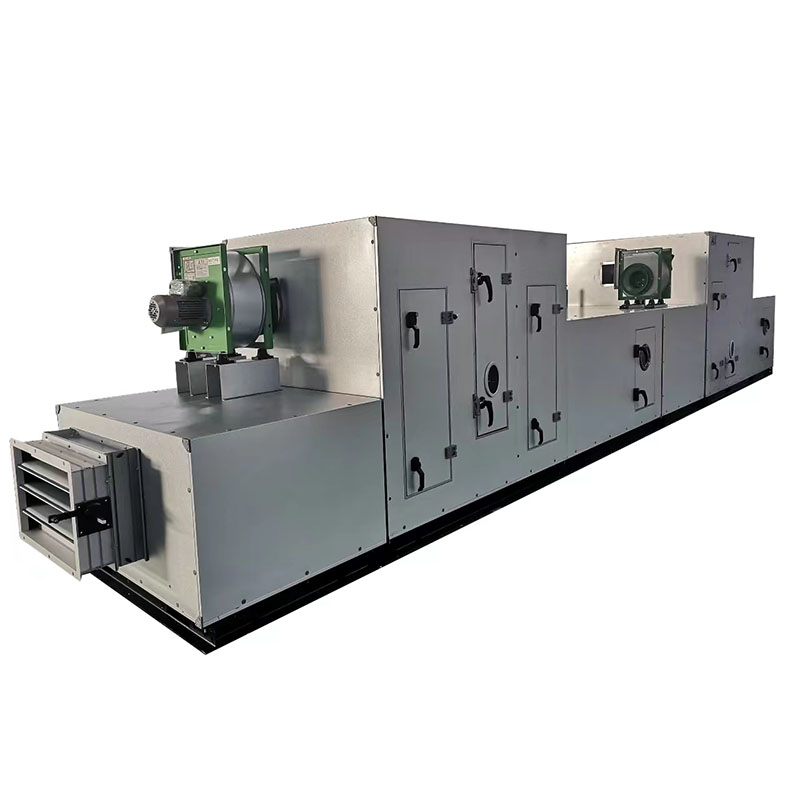

Industrial Dehumidifier

ABDXX-XXQS-XXXSM-H-X
Customers provide process requirements - model selection - technical parameter confirmation - contract signing - advance payment - production - full payment - delivery - after-sales service (the quotation does not include overseas after-sales costs)

Consult

Features
Technical Indicators
Overall Dimension

1. Energy saving: Patented 2R device, energy saving of about 35%, ADS-Y system unit, unit energy saving of 50%. 2. Intelligence: The system adopts PLC integrated control, lower energy consumption and smarter system. 3. Cloud monitoring: Self-developed monitoring system, mobile phone can support and control equipment all over the world, trace product production process environment, and provide service evidence. 4. Frameless structure: Patented frameless structure, no dead corners, no condensation, and the overall air leakage rate is less than one thousandth. 5. Configuration: The core components of the equipment are imported brands, and the quality is more guaranteed. 6. Service: There are many branches and service agencies across the country, which can reach customers within 4 hours. Application environment Spaces with humidity control, such as food and medicine, lithium battery production environment, electronic products, glass manufacturing, warehouses, wood drying, power plants, shipyards, coating industry, etc.
Parameter Device Model ADS-20E/01A ADS-30E/01A ADS-40E/02A ADS-50E/02A ADS-60E/03A ADS-70E/03A ADS-80E/03A ADS-100E/04A ADS-120E/04A ADS-150E/04A ADS-200E/05A ADS-300E/06A Rated air handling volume M3/H 2000 3000 4000 5000 6000 7000 8000 10000 12000 15000 20000 30000 Regeneration air volume M3/H 670 1000 1100 1600 1800 2200 2500 2700 3300 4100 5500 8200 Processing fan power KW 2.2 3 3 4 4 5.5 5.5 5.5 7.5 7.5 11 15 Regeneration fan power KW 0.75 0.75 1.1 1.5 1.5 1.5 2.2 2.2 3 3 4 7.5 Rotor motor power KW 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.15 0.15 0.15 0.15 0.15 Regeneration energy consumption Electric heating KW 22.5 32 38 53 60 71 80.5 90 103.5 128 173 255 Installed power KW Steam consumption KG/H 39.5 56 66.5 92.5 105 125 141 157.5 181 224 302.5 446.5 Electric heating 23.37 32.87 39.22 54.62 61.62 72.62 82.82 92.35 106.65 131.15 177.15 262.65 Steam Heating 0.87 0.87 1.22 1.62 1.62 1.62 2.32 2.35 3.15 3.15 4.15 22.65 Weight KG 630 770 820 1000 1100 1210 1350 1510 1630 1820 2290 2650 Dimensions (length*width*height) 1100*950*1600 1100*950*1600 1100*950*1600 1300*1125*1900 1300*1125*1900 1300*1125*1900 1600*1300*2200 1600*1300*2200 1600*1300*2200 1600*1300*2200 2100*1800*2700 2500*2200*3600 Notes: 1. The above standard models do not have a processing fan, which is an optional accessory. 2. Steam consumption is calculated based on the latent heat of vaporization 2018.4KJ/KG, gauge pressure 400KPA. 3. Based on the air inlet temperature of 12 degrees and the air density of 1.2KG/M3, it is convenient for customers to flexibly configure the front surface cooling and other air treatment systems. 4. The functional segment technical parameters of the combined dehumidifier unit need to be calculated according to user needs, please contact Aosid Company. 5. The unit size does not include the processing fan. 6. The data is for reference only, please refer to the unit nameplate. If there is any design change, no further notice will be given.

Parameter Device Model		ADS-20E/01A	ADS-30E/01A	ADS-40E/02A	ADS-50E/02A	ADS-60E/03A	ADS-70E/03A	ADS-80E/03A	ADS-100E/04A	ADS-120E/04A	ADS-150E/04A	ADS-200E/05A	ADS-300E/06A
Rated air handling volume M3/H		2000	3000	4000	5000	6000	7000	8000	10000	12000	15000	20000	30000
Regeneration air volume M3/H		670	1000	1100	1600	1800	2200	2500	2700	3300	4100	5500	8200
Processing fan power KW		2.2	3	3	4	4	5.5	5.5	5.5	7.5	7.5	11	15
Regeneration fan power KW		0.75	0.75	1.1	1.5	1.5	1.5	2.2	2.2	3	3	4	7.5
Rotor motor power KW		0.12	0.12	0.12	0.12	0.12	0.12	0.12	0.15	0.15	0.15	0.15	0.15
Regeneration energy consumption	Electric heating KW	22.5	32	38	53	60	71	80.5	90	103.5	128	173	255
Installed power KW	Steam consumption KG/H	39.5	56	66.5	92.5	105	125	141	157.5	181	224	302.5	446.5
	Electric heating	23.37	32.87	39.22	54.62	61.62	72.62	82.82	92.35	106.65	131.15	177.15	262.65
	Steam Heating	0.87	0.87	1.22	1.62	1.62	1.62	2.32	2.35	3.15	3.15	4.15	22.65
Weight KG		630	770	820	1000	1100	1210	1350	1510	1630	1820	2290	2650
Dimensions (lengthwidthheight)		11009501600	11009501600	11009501600	130011251900	130011251900	130011251900	160013002200	160013002200	160013002200	160013002200	210018002700	250022003600
Notes: 1. The above standard models do not have a processing fan, which is an optional accessory. 2. Steam consumption is calculated based on the latent heat of vaporization 2018.4KJ/KG, gauge pressure 400KPA. 3. Based on the air inlet temperature of 12 degrees and the air density of 1.2KG/M3, it is convenient for customers to flexibly configure the front surface cooling and other air treatment systems. 4. The functional segment technical parameters of the combined dehumidifier unit need to be calculated according to user needs, please contact Aosid Company. 5. The unit size does not include the processing fan. 6. The data is for reference only, please refer to the unit nameplate. If there is any design change, no further notice will be given.
